Track loader · Kubota D1105 engine

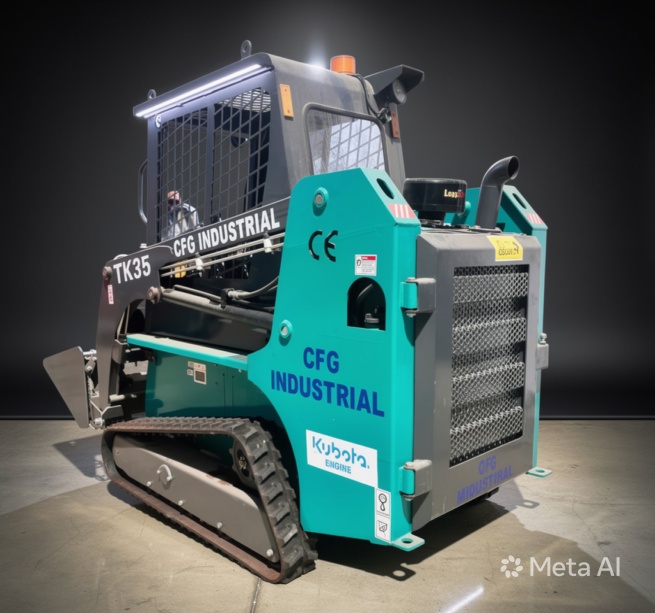

TK35, the loader that fits anywhere
Under a metre wide and riding on tracks: it works on turf, mud or slopes without bogging down and without tearing everything up. Ideal for landscaping and tight residential job sites.
LandscapingPaver installsTight lotsMaterial handlingSnow removal
From $19,800 + tax · CAD
18-month parts warranty included
Full spec sheet
Performance
- Operating weight
- 1,550 kg
- Max. lift capacity
- 380 kg
- Bucket capacity
- 0.2 m³
- Bucket width
- 915 mm
- Max. working height
- 3,093 mm
- Max. hinge-pin height
- 2,765 mm
- Dump height
- 2,123 mm
- Travel speed
- 9 km/h
- Gradeability
- 30% (≈ 17°)
- Dump angle
- 30°
Dimensions
- Overall length
- 2,870 mm
- Overall width
- 993 mm
- Overall height
- 1,915 mm
- Wheelbase
- 880 mm
- Ground clearance
- 150 mm
Engine and tanks
- Engine
- Kubota D1105
- Power
- 18.2 kW (24 hp)
- Fuel
- Diesel
- Cooling
- Water-cooled
- Fuel tank
- 40 L
- Hydraulic tank
- 40 L
